As of EZ-VOTE Connect v3.0.163, we introduced new charting engine that isn't based on MS Excel anymore and doesn't allow separate modification of the percentage and chart bars. In other words, resizing the chart will resize both the graph and the percetage associated with each bar.
You can still use the Horizontal chart type to line up your answer text with each of the bars, but the process is slightly different from what it used to be. Perhaps a little bit simpler, too.
- Insert any of your favorite polling slides and change the Chart Type to Horizontal.
- If you don't like to use the Legend, turn it off in Tools --> Settings --> Slide Level --> Chart --> Legend -- Hide
- Move the text of the answers and the chart so that they overlap/line up.
- Move the chart behind the text via right-click --> Send to Back (or Send Backward)

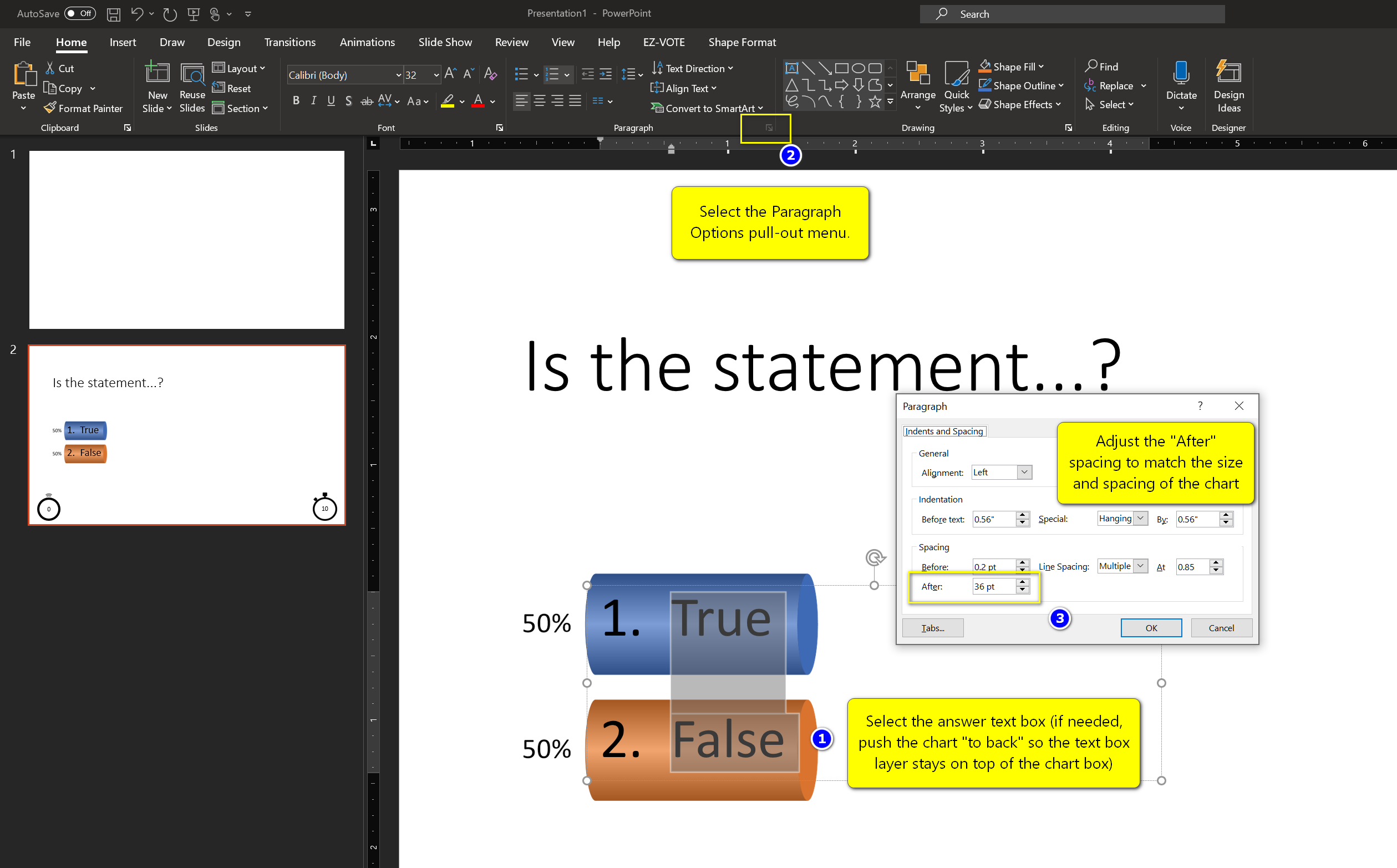

- Select (highlight) either the specific line of the answers that you're trying to align with the chart bars, or leave the whole answer text selected.
- Then click the small "Expand" button in the bottom-right corner on the Home tab, under the Paragraph section.
- Adjust the "After" spacing to line up the text to the bars...you may have to come back to this window a few times until you're happy with the result.
Let us know if this was helpful below...
